pydisplay¶

Cross-platform display and event drivers for MicroPython, CircuitPython, and CPython.

pydisplay is a foundation for GUI libraries — not a GUI itself. It provides display drivers, touch and input events, drawing primitives, fonts, and palettes with a consistent API across platforms. Use it directly for simple apps, or pair it with LVGL, MicroPython-Touch, Nano-GUI, or your own framework.

Alpha quality

pydisplay is under active development. APIs and documentation are still catching up with the code. Feedback and pull requests are welcome.

Choose your path¶

I want to…	Start here
Try in the browser (no install)	Try pydisplay → PyScript
Try in Wokwi simulator	Try pydisplay → Wokwi
Run on ESP32 / MicroPython board	ESP32 quick start
Develop on desktop (CPython)	Desktop quick start
Browse all options	Getting started

Key features¶

One API, many platforms — develop on desktop CPython, deploy to MicroPython on ESP32-S3, or run in CircuitPython without rewriting display code.
Unified input — touchscreens, mice, keypads, keyboards, rotary encoders, and joysticks produce consistent events modeled on PyGame/SDL2.
Drawing — MicroPython framebuf API everywhere; optional graphics module with extra helpers such as rounded rectangles.
Examples — dozens of scripts in src/examples/, including ports from st7789py_mpy.
Flexible install — full git clone, GitHub MIP packages, or precompiled packages from the PyDevices micropython-lib index.

Quick links¶

Resource	URL
Documentation	pydisplay.readthedocs.io
PyScript browser demo	PyDevices.github.io/pydisplay/demo/
Source	github.com/PyDevices/pydisplay
MIP package index	PyDevices micropython-lib

Screenshots¶

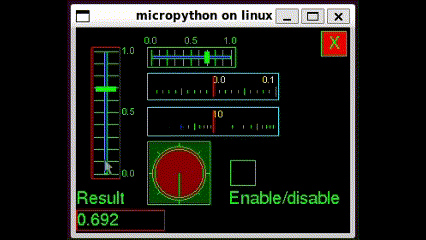

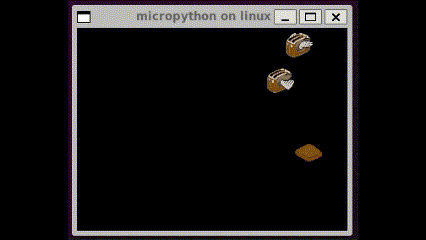

active.py	tiny_toasters.py

More: Try pydisplay gallery.

What pydisplay is not¶

Not a widget toolkit — no built-in buttons, sliders, or layout managers.
Not a task scheduler — use multimer or asyncio for timing.
Not a GUI library — pair with LVGL, MicroPython-Touch, PyWidgets (add_ons/pdwidgets), or roll your own.

See Architecture for the full mental model.
